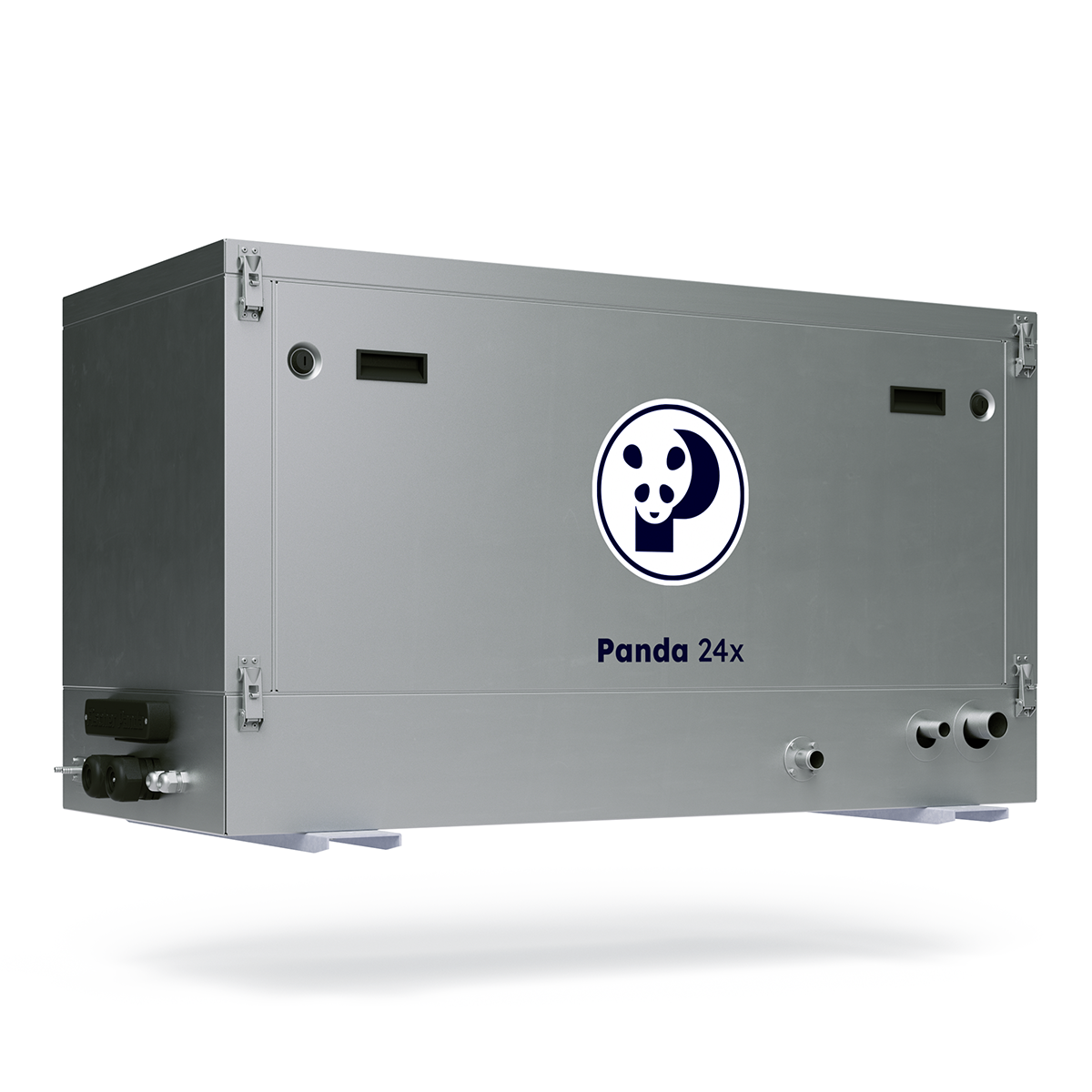

Panda 24x PVMV-N
General Technical Data
| Model | Panda 24x PVMV-N |
| Generator Type | xSeries - Compact Power |
| Generator Family | 24x |
| Generator Version | PVMV-N |
| Article | 0023331 |
| Area of Application | Vehicle (V) |
| Frequency [Hz] | 50 |
| Generator Manufacturer | Fischer Panda GmbH |
| Isolation Class of Windings | H |
| Nominal Speed | 3000 |
| Voltage Regulation | xControl / fpControl |
| Voltage Tolerance | 3V |
| Cos Phi | 0.85 |
Electrical Winding
| Engine Speed [rpm] | 3000 |
| Nominal Voltage in Volt | 230 |
| Frequency [Hz] | 50 |
| Number of Phases | 1 |
| Nominal Performance [kW] | 20,4 |
| Nominal Performance [kVA] | 24,0 |
Engine
| Engine Manufacturer | Kubota |
| Engine Type | KU V1505 |
| No. Cylinders | 4 |
| Displacement | 1498 |
| Starter System | 12 V |
Sound Insulation Capsule (Sound Shield)
| Version | 4DS MPL |
| Sound Cover Type | 4DS |
| Sound Insulation Material | MPL |
| Dimensions Housing L x W x H [mm] | 1220 x 540 x 680 |
| Total Weight of Generator with Capsule [kg] | 465 |
| Sound levels [dbA] 7m / 5m / 1m | 55 / 65 / 69 |
