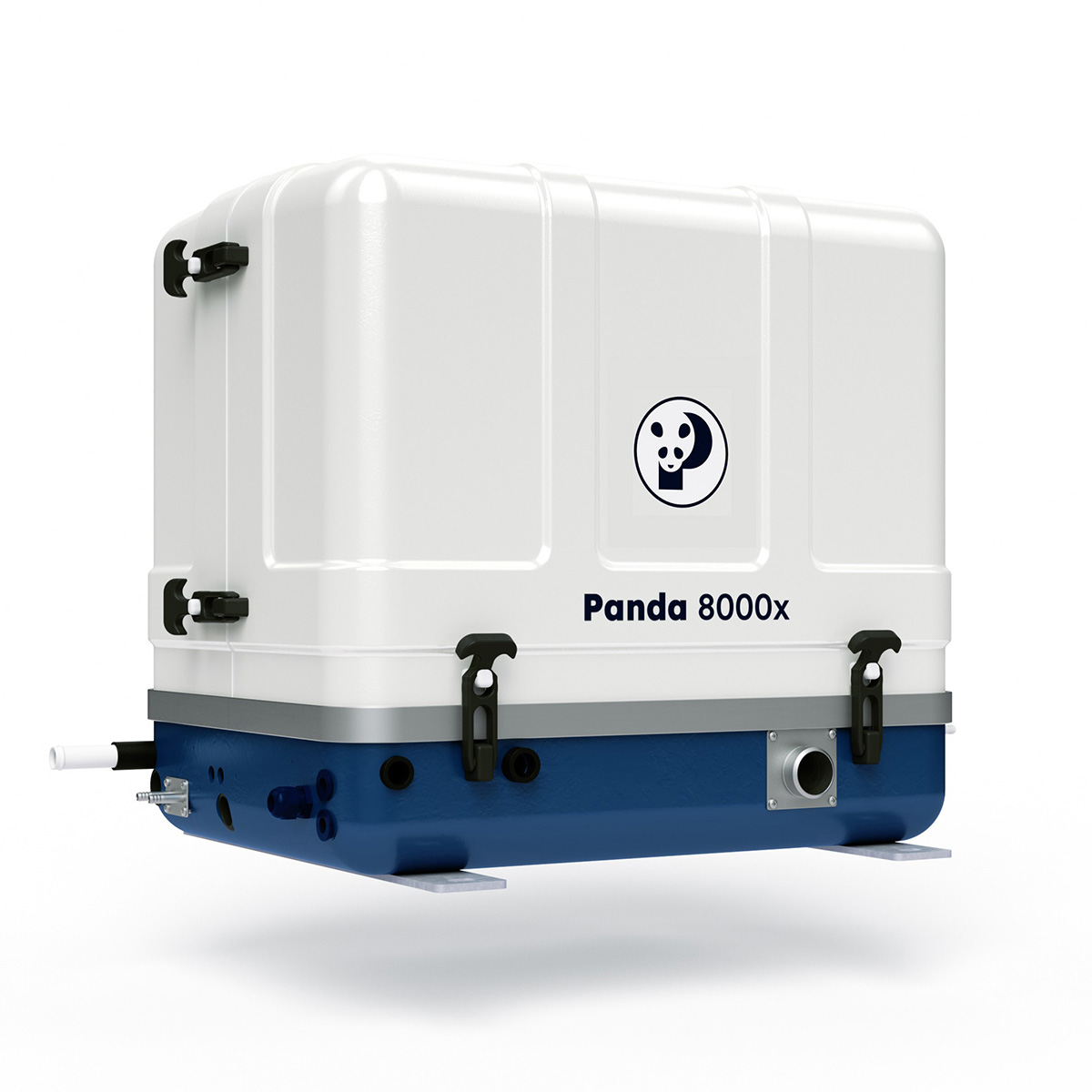

Panda 8000x PMS


Compact. Reliable. Continuous.

The x-Series is your go-to solution for stable onboard power – rugged, space-saving, and ready for continuous operation.

Reliable power for boats with high energy demands
The x-Series is the ideal choice for those who need a compact and quiet generator that delivers stable output at 3000 rpm – perfect for powering sensitive electronics and high-load consumers alike.

Why choose the x-Series?

Regulated voltage for sensitive systema
Electronically controlled output with a tight ±3 V tolerance ensures safe and stable performance for navigation, communication, and comfort systems on board.

Compact and installation-friendly
The x-Series fits into tight spaces and simplifies installation – even near living areas.

Built for continuous marine operation
With full water-cooling da würde ich noch Engine und Alternator zuschreiben, a low-noise acoustic capsule (52–54 dBA @ 7 m), and robust diesel technology, the x-Series is designed to run reliably under tough conditions.

Designed for skippers, charter operators & energy planners

Professional vessels & cruisers
Reliable energy supply for navigation, air conditioning and mission-critical onboard systems

Power-hungry onboard applications
Handles start-intensive consumers like dive compressors or electric winches with ease

Fixed-speed system setups
Ideal for installations that require stable AC output without speed modulation

Your benefits at a glance

  • Compact, lightweight, and quiet
  • Stable voltage with ±3 V regulation
  • High start capacity for demanding consumers
  • Digital control panel with autostart and data logging
  • Fully water-cooled for reliable marine performance
  • Compatible with CAN BUS (SAE J1939 / NMEA 2000)
  • HVO-ready – for sustainable energy at sea

Seamless integration. Reliable performance. Engineered by Fischer Panda.

Request a Quote


General Technical Data
ModelPanda 8000x PMS
Generator TypexSeries - Compact Power
Generator Family8000x
Generator VersionPMS
Article Number0028281
Area of ApplicationMarine (M)
Frequency [Hz]50
Generator ManufacturerFischer Panda GmbH
Isolation Class WindingsH
Nominal Speed [rpm]3000
Voltage RegulationfpControl
Voltage Tolerance±3V
Cos Phi0.85
Electrical Winding
Engine Speed [rpm]3000
Nominal Voltage in Volt230
Frequency [Hz]50
Number of Phases1
Nominal Performance [kW]6,8
Nominal Performance [kVA]8,0
Continuous Performance [kW]6.1
Continuous Performance [kVA]7.2
Engine
Engine ManufacturerKubota
Engine TypeKU Z482
No. Cylinders2
Displacement [cm3]479
Starter System12 V
Sound Insulation Capsule (Sound Shield)
VersionGFK 3D
Sound Cover Type3D
Sound Insulation MaterialGFK
Dimensions Housing  L x W x H [mm]595 x 445 x 555
Total Weight of Generator with Capsule [kg]164
Sound levels [dbA] 7m / 5m / 1m52 / 62 / 67

Downloads



We’ll be happy to assist you in finding the right generator for your needs.

Get Expert Advice

The technical parameters / output performance may vary for different generator types and exhaust emission norms for different countries. All performance data applies to generator operation at 100m above sea level at 20°C. Performance reductions can occur when operating at greater heights.
