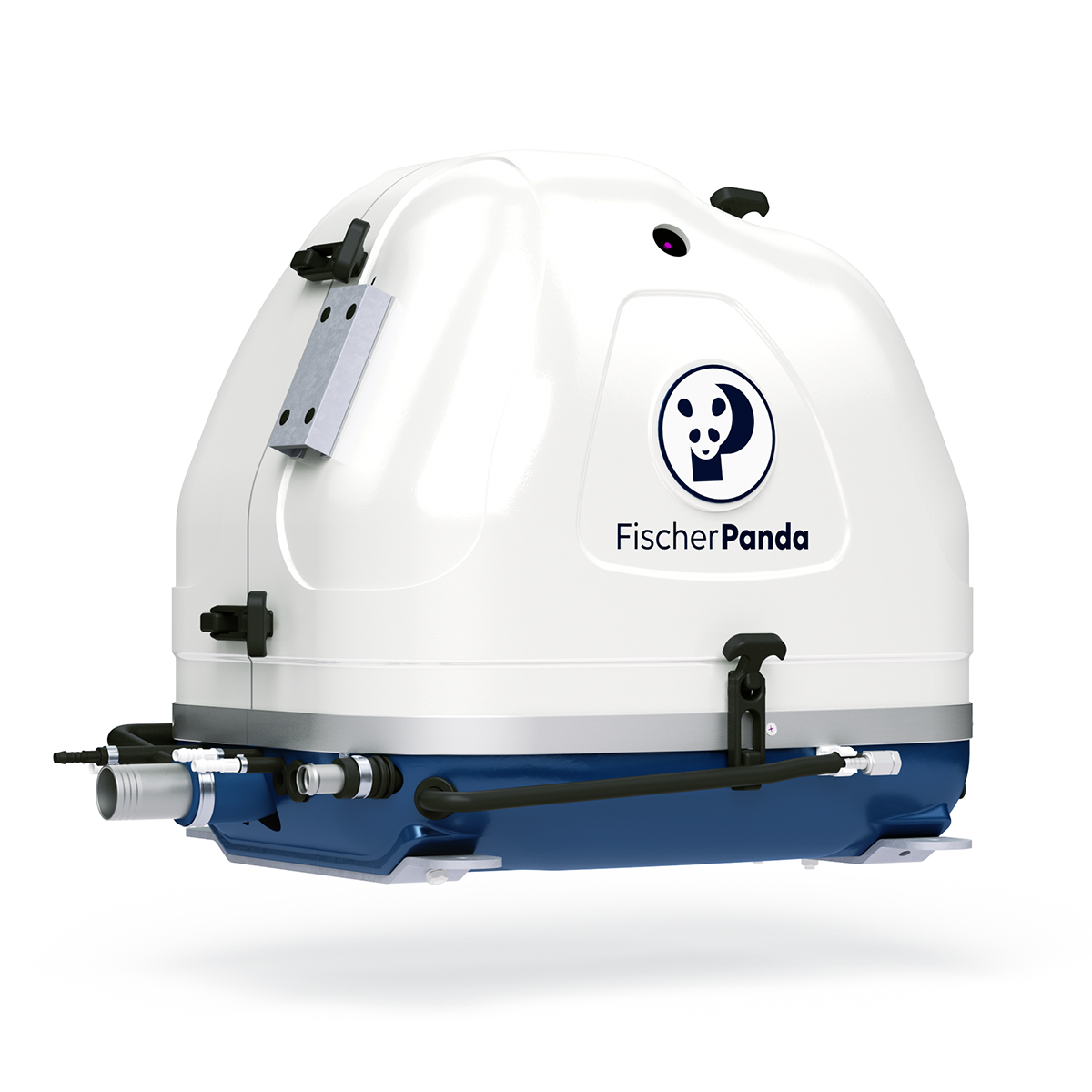

Panda 4000s.Neo PMS


Compact. Reliable. Continuous.


The x-Series is your go-to solution for stable onboard power – rugged, space-saving, and ready for continuous operation.

Reliable power for boats with high energy demands
The x-Series is the ideal choice for those who need a compact and quiet generator that delivers stable output at 3000 rpm – perfect for powering sensitive electronics and high-load consumers alike.

Why choose the 4000s.Neo?

Compact and installation-friendly
The 4000s.Neo fits into tight spaces and simplifies installation – even near living areas.

Built for continuous marine operation
With full water-cooling alternator, a low-noise acoustic capsule, and robust diesel technology, the 4000s.Neo is designed to run reliably under tough conditions.

Designed for skippers, charter operators & energy planners

Professional vessels & cruisers
Reliable energy supply for navigation, air conditioning and mission-critical onboard systems

Power-hungry onboard applications
Handles start-intensive consumers like dive compressors or electric winches with ease

Fixed-speed system setups
Ideal for installations that require stable AC output without speed modulation

Your benefits at a glance

  • Compact, lightweight, and quiet
  • Stable voltage with ±3 V regulation
  • High start capacity for demanding consumers
  • Fully water-cooled for reliable marine performance
  • HVO-ready – for sustainable energy at sea


General Technical Data
ModelPanda 4000s.Neo PMS
Generator TypeCompact Power
Generator Family4000s.Neo
Generator VersionPMS
Article Number0014669
Area of ApplicationMarine (M)
Frequency [Hz]50
Generator ManufacturerFischer Panda GmbH
Isolation Class WindingsH
Nominal Speed [rpm]3000
Voltage Regulation-
Voltage Tolerance±3V
Cos Phi0.85
Electrical Winding
Engine Speed [rpm]3000
Nominal Voltage in Volt230
Frequency [Hz]50
Number of Phases1
Nominal Performance [kW]3,4
Nominal Performance [kVA]4,0
Engine
Engine ManufacturerFischer Panda GmbH
Engine TypeFPE 320
No. Cylinders1 Cylinder Diesel
Displacement [cm3]309
Starter System12 V
Exhaust Emissions Standard (Marine)
IMO MARPOL 73/78x
US 40CFR 1042 (EPA Marine)-
EU 2016/1628-
China 20891-2014-
Sound Insulation Capsule (Sound Shield)
VersionGFK 3D
Sound Cover Type3D
Sound Insulation MaterialGFK / MPL
Dimensions Housing  L x W x H [mm]580 x 370 x 545
Total Weight of Generator with Capsule [kg]97
Sound levels [dbA] 7m / 5m / 1m54 / 64 / 69

Downloads


We’ll be happy to assist you in finding the right generator for your needs.

Get Expert Advice

Seamless integration. Reliable performance. Engineered by Fischer Panda.


The technical parameters / output performance may vary for different generator types and exhaust emission norms for different countries. All performance data applies to generator operation at 100m above sea level at 20°C. Performance reductions can occur when operating at greater heights.
