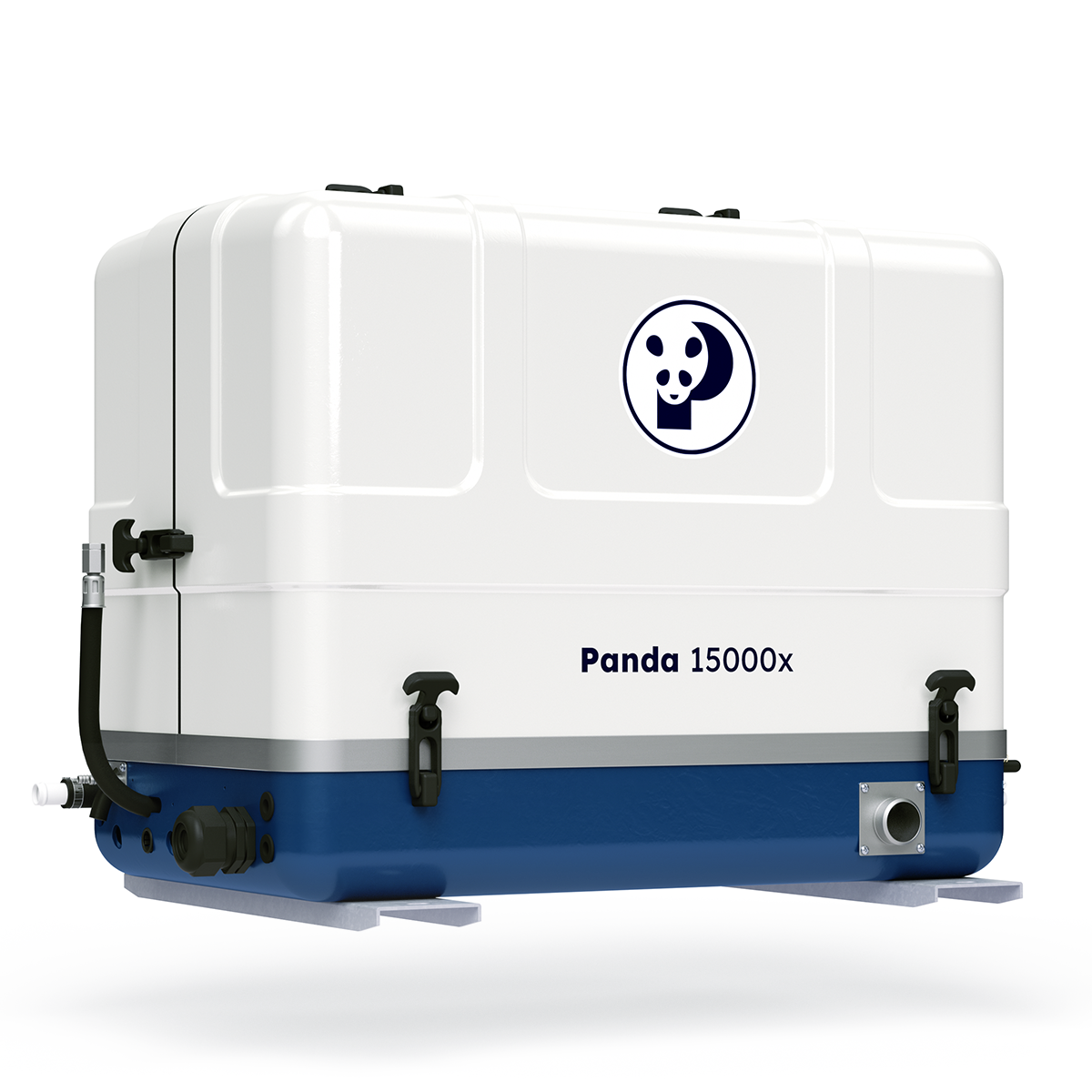

Panda 15000x PMS


Compact. Reliable. Continuous.


The x-Series is your go-to solution for stable onboard power – rugged, space-saving, and ready for continuous operation.

Reliable power for boats with high energy demands
The x-Series is the ideal choice for those who need a compact and quiet generator that delivers stable output at 3000 rpm – perfect for powering sensitive electronics and high-load consumers alike.

Why choose the x-Series?

Regulated voltage for sensitive systema
Electronically controlled output with a tight ±3 V tolerance ensures safe and stable performance for navigation, communication, and comfort systems on board.

Compact and installation-friendly
The x-Series fits into tight spaces and simplifies installation – even near living areas.

Built for continuous marine operation
With full water-cooling, a low-noise sound insulation capsule, and robust diesel technology, the x-Series is designed to run reliably under tough conditions.

Designed for skippers, charter operators & energy planners

Professional vessels & cruisers
Reliable energy supply for navigation, air conditioning and mission-critical onboard systems

Power-hungry onboard applications
Handles start-intensive consumers like dive compressors or electric winches with ease

Fixed-speed system setups
Ideal for installations that require stable AC output without speed modulation

Your benefits at a glance

  • Compact, lightweight, and quiet
  • Stable voltage with ±3 V regulation
  • High start capacity for demanding consumers
  • Digital control panel with autostart and data logging
  • Fully water-cooled for reliable marine performance
  • Compatible with CAN BUS (SAE J1939 / NMEA 2000)
  • HVO-ready – for sustainable energy at sea


General Technical Data
ModelPanda 15000x PMS
Generator TypexSeries - Compact Power
Generator Family15000
Generator VersionPMS
Article Number0038929
Area of ApplicationMarine (M)
Frequency [Hz]50
Generator ManufacturerFischer Panda GmbH
Isolation Class WindingsH
Nominal Speed [rpm]3000
Voltage RegulationfpControl
Voltage Tolerance±3V
Cos Phi0.85
Electrical Winding
Engine Speed [rpm]3000
Nominal Voltage in Volt230
Frequency [Hz]50
Number of Phases1
Nominal Performance [kW]12,7
Nominal Performance [kVA]15,0
Engine
Engine ManufacturerKubota
Engine TypeKU D902
No. Cylinders3 Cylinder Diesel
Displacement [cm3]898
Starter System12 V
Exhaust Emissions Standard (Marine)
IMO MARPOL 73/78✔
US 40CFR 1042 (EPA Marine)✔
EU 2016/1628✔
China 20891-2014✔
Sound Insulation Capsule (Sound Shield)
VersionGFK 3D
Sound Cover Type3D
Sound Insulation MaterialGFK
Dimensions Housing  L x W x H [mm]740 x 480 x 600
Total Weight of Generator with Capsule [kg]248
Sound levels [dbA] 7m / 5m / 1m54 / 64 / 68

Downloads


We’ll be happy to assist you in finding the right generator for your needs.

Get Expert Advice

Seamless integration. Reliable performance. Engineered by Fischer Panda.


The technical parameters / output performance may vary for different generator types and exhaust emission norms for different countries. All performance data applies to generator operation at 100m above sea level at 20°C. Performance reductions can occur when operating at greater heights.

Dimensions apply for the sound insulation capsule only and do not include latches, fittings etc. Additional room will need to be calculated for the installation to include hoses, cables and capsule mountings. Please confirm current dimensions and weights when ordering.
