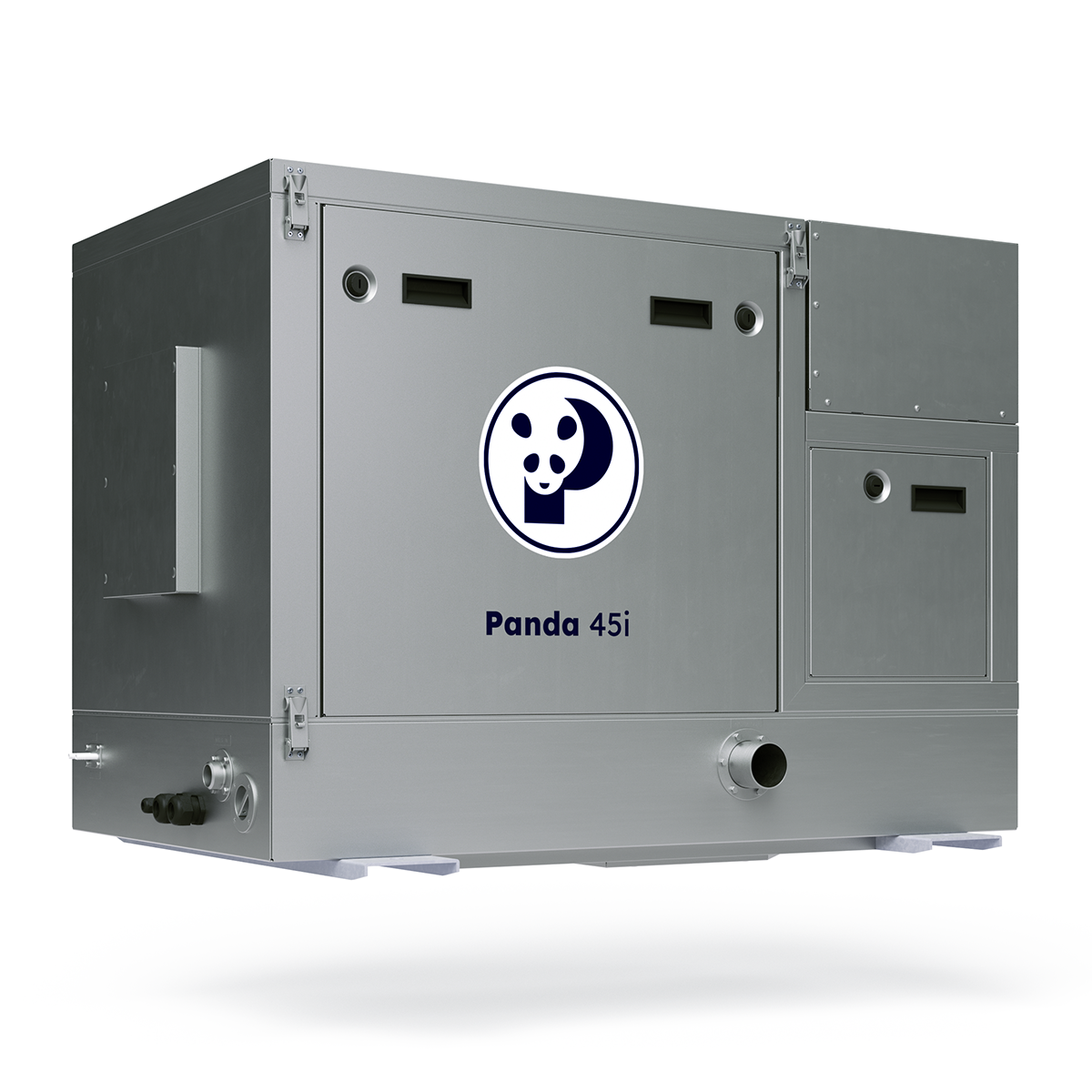

Panda 45i PMS


Compact Generator. Smart Energy Management. Future-Proof.

The Panda 45i is your future-ready generator solution. Experience uncompromising quality, advanced energy efficiency, and modular system compatibility.

Hybrid power for leisure boats and yachts.
The Panda 45i is the ideal choice for users who need compact, quiet, and energy-efficient onboard power – even at low load.

Why choose the Panda 45i?

Maximum efficiency at partial load
With variable engine speed, the generator adjusts precisely to the actual power demand. This lowers fuel consumption, reduces emissions – and ensures ultra-quiet operation.

Integrated inverter for smart power distribution
The built-in PMG inverter delivers clean AC power with optimal efficiency. Charging voltage is automatically regulated based on RPM and load profile.

Space-saving and installation-friendly
The compact design and short cable paths between generator and battery bank make the Panda 45i ideal for tight installation spaces and hybrid setups.

Designed for professionals and pioneers

  • Leisure boats & yachts
    Energy supply secured whenever you are away from shorepower
  • Hybrid DC-AC systems
    Perfect match for modern energy architectures

Your benefits at a glance

  • Optimized for low-load operation (<50%)
  • Ultra-quiet thanks to variable speed control
  • High energy efficiency with PMG technology
  • Compact, lightweight, and easy to install
  • Tailor-made for hybrid energy concepts


Seamless integration. Reliable performance. Engineered by Fischer Panda.



General Technical Data
ModelPanda 45i PMS
Generator TypeiSeries - Perfect Power
Generator Family45i
Generator VersionPMS
Article Number0033433
Area of ApplicationMarine (M)
Frequency [Hz]50
Generator ManufacturerFischer Panda GmbH
Isolation Class WindingsH
Nominal Speed [rpm]1500 - 2700
Voltage RegulationiControl
Voltage Tolerance±3%
Cos Phi0.80
Electrical Winding
Engine Speed [rpm]1500 - 2700
Nominal Voltage in Volt400
Frequency [Hz]50
Number of Phases3
 36,0
Nominal Performance [kVA]45,0
Continuous Performance [kW]32.4
Continuous Performance [kVA]40.5
Engine
Engine ManufacturerKubota
Engine TypeKU V2403T
No. Cylinders4
Displacement [cm3]2434
Starter System12 V
Sound Insulation Capsule (Sound Shield)
VersionMPL 4DS
Sound Cover TypeMPL
Sound Insulation Material4DS
Dimensions Housing  L x W x H [mm]1130 x 660 x 810
Total Weight of Generator with Capsule [kg]545
Sound levels [dbA] 7m / 5m / 1m54 / 59 / 69

Downloads



We’ll be happy to assist you in finding the right generator for your needs.

Get Expert Advice

The technical parameters / output performance may vary for different generator types and exhaust emission norms for different countries. All performance data applies to generator operation at 100m above sea level at 20°C. Performance reductions can occur when operating at greater heights.
